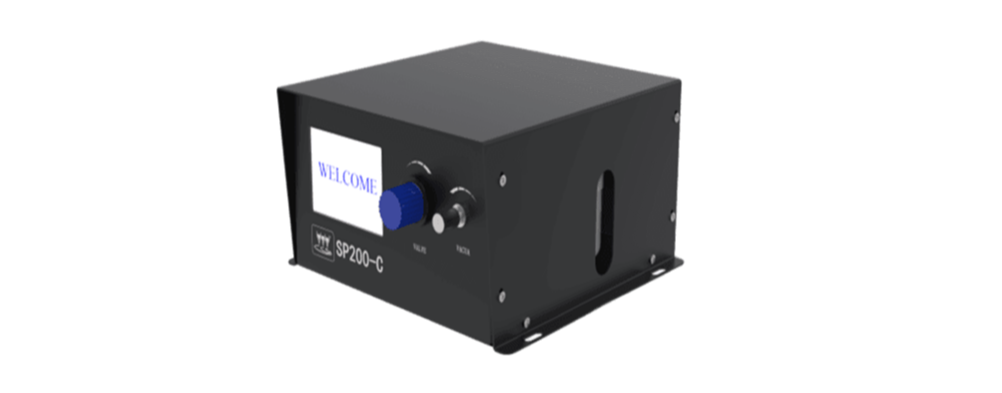

Pneumatic Valve Controller - SP-200-C

SP-200-C is a high-precision dispensing controller 5. Driving Air Pressure (Accuracy) developed by SaeJong, designed for driving and controlling 6. Material Supply Air Pressure (Accuracy) 7. Vacuum Level SaeJong pneumatic valves and spray valves.
The controller features single-channel pressure output with switchable positive/negative pressure modes, providing flexible operation for diverse fluid handling applications.

Consult

Product Characteristics

1. The system features dual-channel adjustable pressure output, with one channel switchable to negative pressure mode for post-dispensing material retraction, effectively preventing adhesive dripping.
2. Its high-precision pressure control (±0.1% FS) meets stringent requirements for precision dispensing applications.
3.Real-time parameter adjustment without production interruption ensures both operational simplicity and practicality.

Specifications

Dimensions	210242152mm
Power Supply	AC220V±10%，50~60Hz
Power	80W
Input Air Pressure	0.6MPa
Driving Air Pressure (Accuracy)	0-0.6MPa（±1%.FS）
Material Supply Air Pressure (Accuracy)	0-0.2MPa（0.75%.FS）
Vacuum Level	0-10kPa

Application Scope

Adapt to saejong Piezoelectric Jet Valve Actuation & Control.
