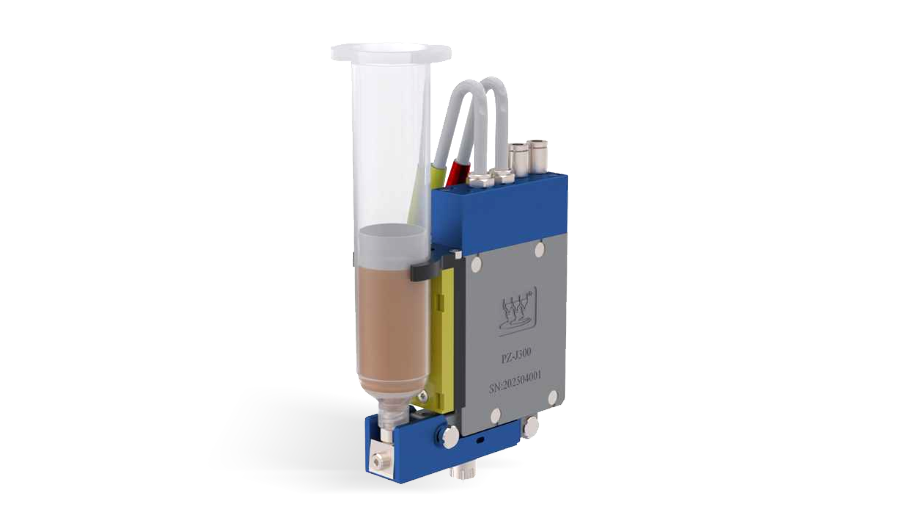

Piezo Jet Valve - PZ-J300/400

The product enables non-contact jet dispensing for fluids ranging from low to high viscosity.
Utilizing dual-piezoelectric drive technology, it delivers ultra-high dispensing frequency, exceptional accuracy, and outstanding stability.

Consult

Product Video

Product Characteristics

1. Non-contact dispensing technology eliminates Z-axis movement, enabling high-speed applications on complex surfaces.
2.Dual-piezoelectric drive ensures stable dispensing at 1,200Hz, achieving 0.15mm dot diameter and 0.2mm line width.
3.Wide fluid viscosity compatibility (1–500,000cP) meets dynamic dispensing requirements.

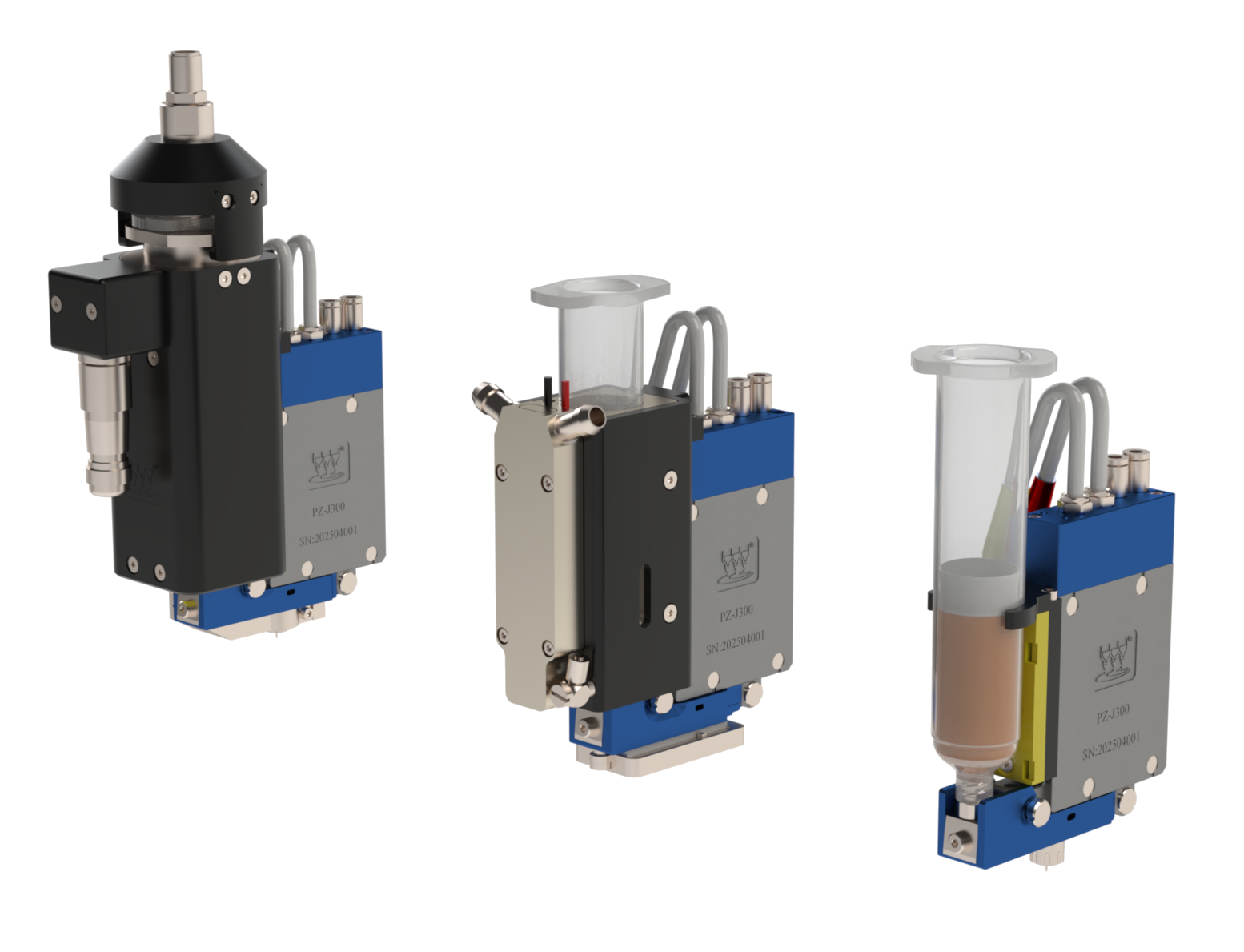

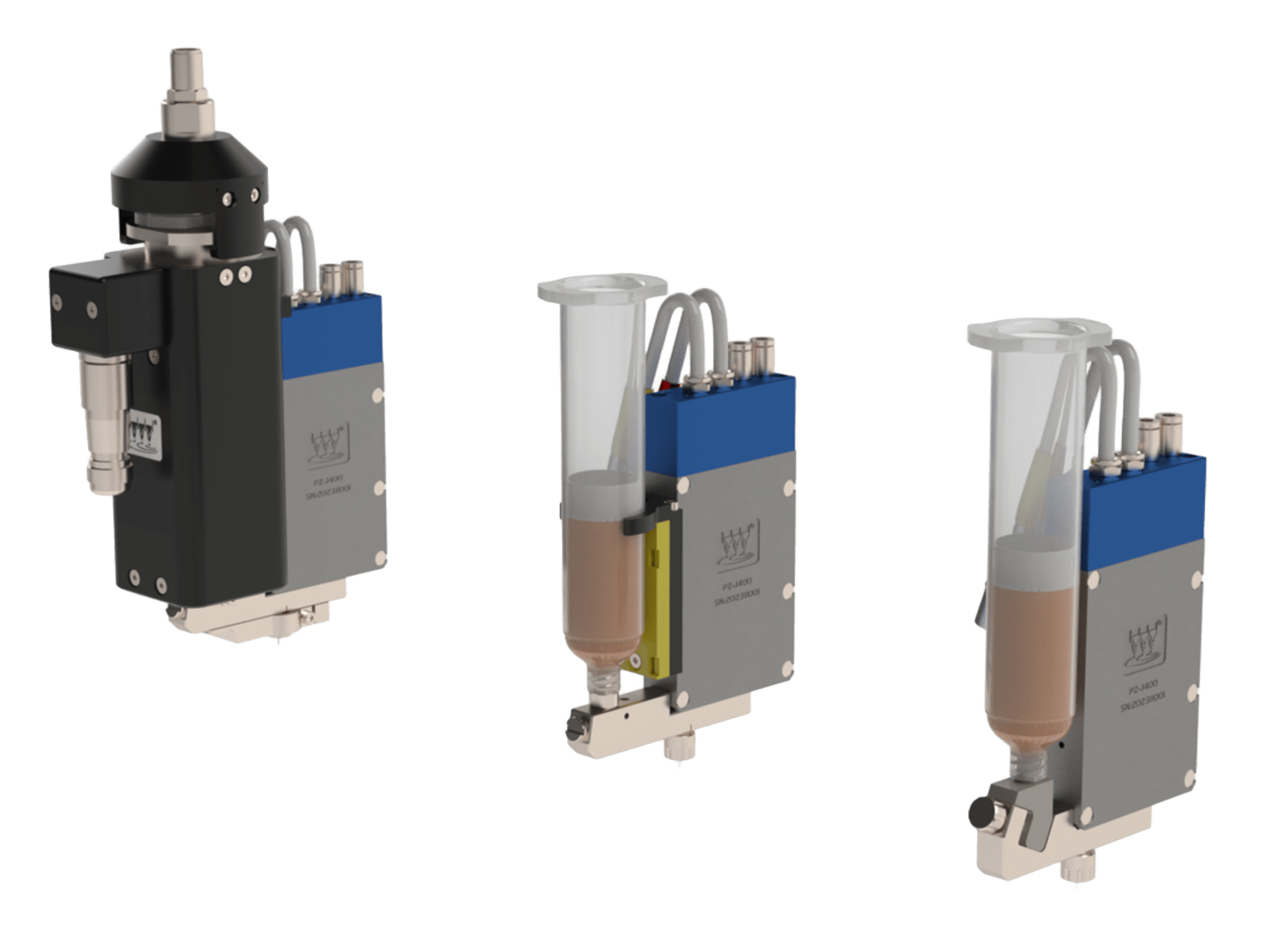

4.Modular configurations (Standard/Quick-Release/Hot-Melt/Cold- Adhesive) provide multi-functional versatility in a single valve.

Specifications

Name	Parameters
Viscosity Range	0-1000000cps
Maximum Operating Frequency	2000Hz
Minimum Dot Diameter	0.15mm
Minimum Line Width	0.2mm
Metering Accuracy	±1%
Cartridge Heating Temperature (Optional)	20-180℃
Flow Path Heating Temperature (Optional)	20-200℃
Cartridge Cooling Temperature (Optional)	20℃ below ambient temperature
Flow Path Cooling Temperature (Optional)	20℃ below ambient temperature

Application Scope

1.High-speed dispensing applications for complex surfaces
2.Ultra-high-precision dispensing applications
3.Micro-volume dispensing applications
